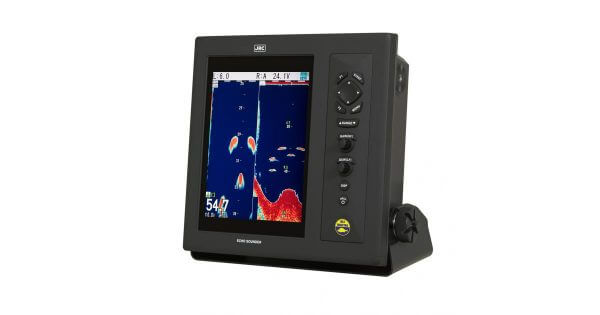

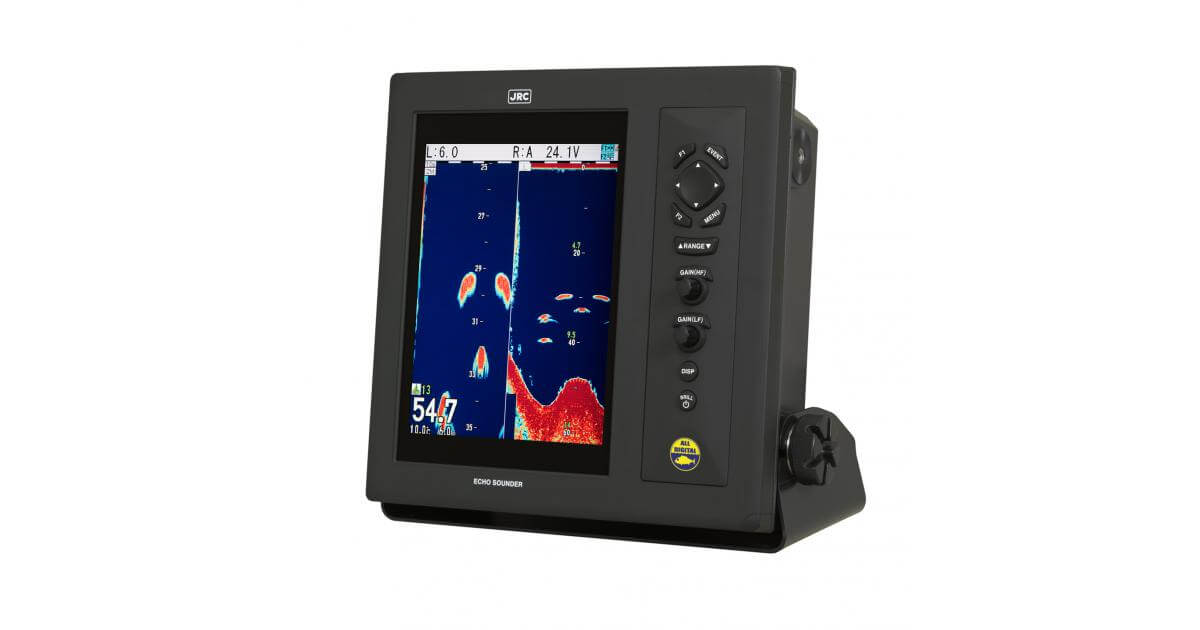

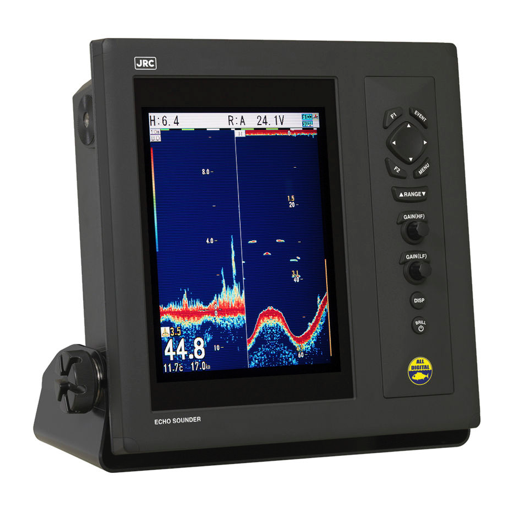

JFC-800/810 Dýptarmælir
Tveggja tíðna dýptarmælir með mjög björtum og skýrum 10″ skjá.
Hentar vel þar sem pláss er lítið en þörf er á öflugum dýptarmæli, án þess að slegið sé af kröfunum til þess að greina vel botnlag og fisk.
Helstu eiginleikar:
- 10,4” Bjartur skjár sem sést vel á í sól
- Tveggja tíðna 50/200 khz, 1 Kw sendir
- Hægt að tengja aukaskjá
- NMEA 0183 inn og útgangur
- Hægt að vista 10 skjámyndir í minni
- Háþróuð stafræn myndvinnsla
- Handvirkar og sjálfvirkar stillingar á styrk og skala.
- Vinnur á 10,8 – 31,2 volta spennu
Specifications
Model | JFC-800 | JFC-810 |

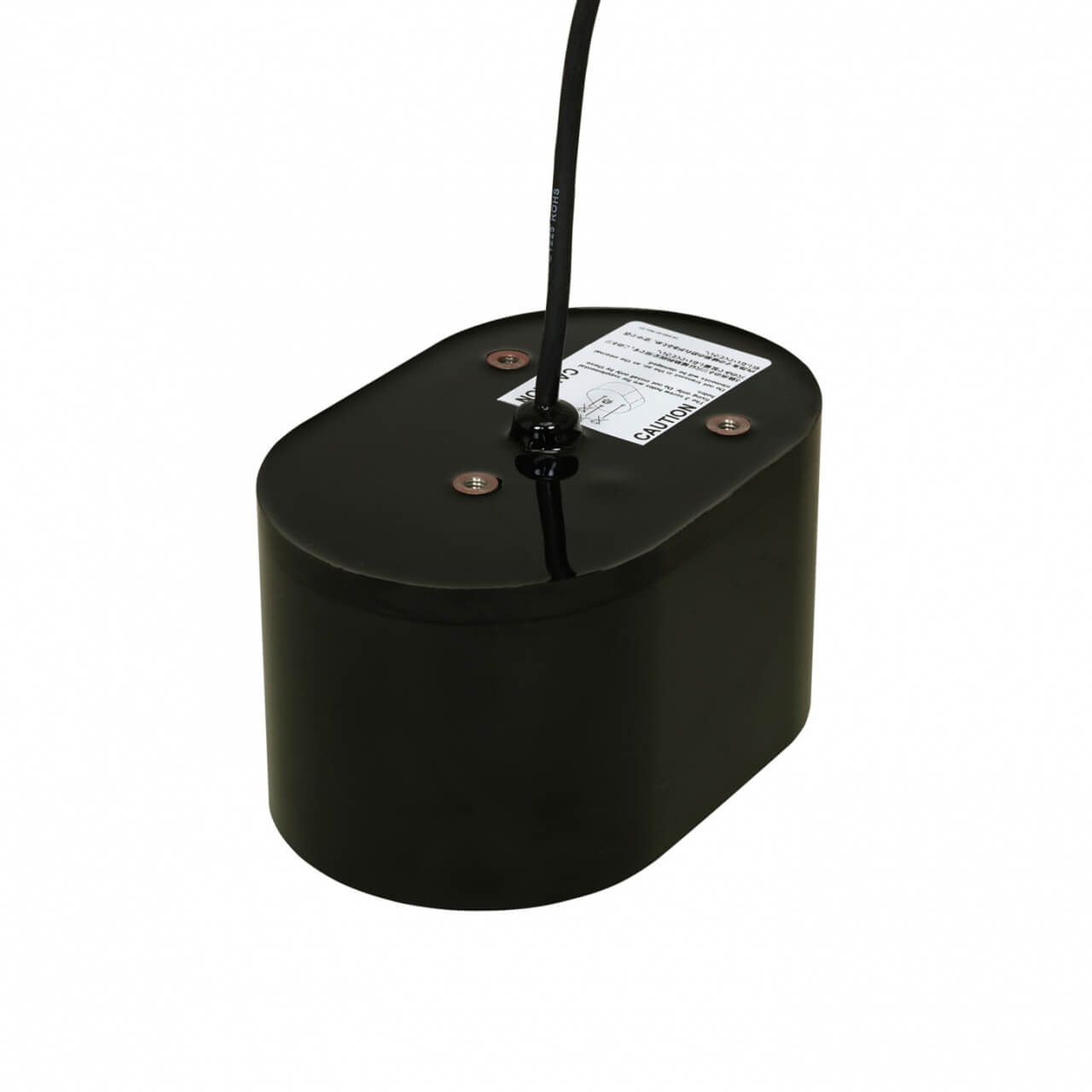

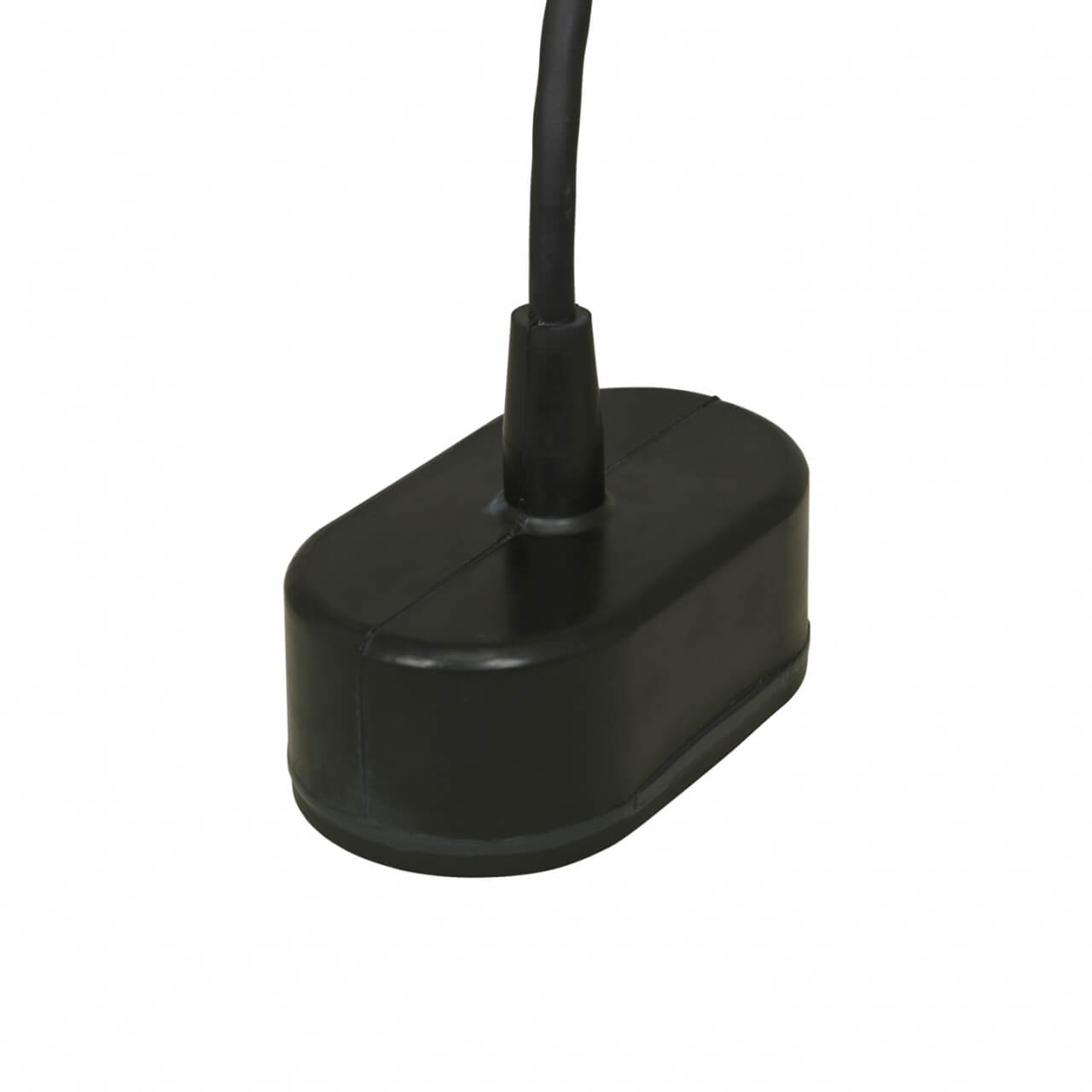

Transducer | Standard | High Sensivity |
---|---|---|
Output power (RMS) | 1kW | |
Output frequency | 50kHz and 200kHz | |
Output method | Single or Alternate | |
Display size and type | 10.4 inch color TFT LCD | |
Display resolution | 640 × 480 pixels (VGA) | |
Basic range | 2.5 to 2000 (m), 10 to 6000 (ft), 2.5 to 1100 (fm / l.fm) (8 ranges can be set to users choice) | |
Zoom range | 2.5 to 200 (m), 10 to 650 (ft), 2.5 to 150 (fm / l.fm) | |
Range unit | m, ft, fm, l.fm | |
Shift step | 1m、10m、1/8、1/4 | |
Presentation modes | High frequency, Low frequency, Dual frequency, Zoom image (Bottom lock, Bottom discrimination, Bottom zoom, Zoom,Bottom follow zoom), Nav mode, Vertical split, Horizontal split,A-scope can be displayed at all above modes | |
Presentation colors | 64 colors, 16 colors, 8 colors, Monochrome | |
Back ground colors | Marine blue, Blue, Black, White, Nighttime color, Other 5 colors | |
Alarms | Bottom, Fish, Temperature*1, Speed*2, Arrival*3, XTE*3 | |
Image speed | 9 steps & stop | |
Functions | Interference rejection, Color rejection, VRM, Noise rejection, White line, Draft correct, Water temperature correct, Boat speed correct,Store image (10 images), Sona-Tone, Fishing Hot Spot, Event memory, Simple plotter, Panel illumination, Power reduction, External trigger, Fish information, Detection area display | |
Language | Chinese, English, French, Greek, Italian, Japanese, Korean, Spanish, Thai | |
Input data format and sentences | NMEA0183 Ver.1.5/2.0/3.0 GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA |
|
Output data format and sentences | NMEA0183 Ver.2.0 (DBT : Ver.1.5) DBT, DPT, GGA, GLL, HDT, MTW, MWV, RMC, TLL, VHW, VTG, ZDA |
|
NMEA input / output port(s) | 1 | |
Power supply | 10.8 to 31.2VDC | |
Power consumption | 30W or less (24VDC) | |
Ambient conditions | Operating temperature :-15 to +55℃ Water protection:IPX5 |
