JRC JMR-5400 radar

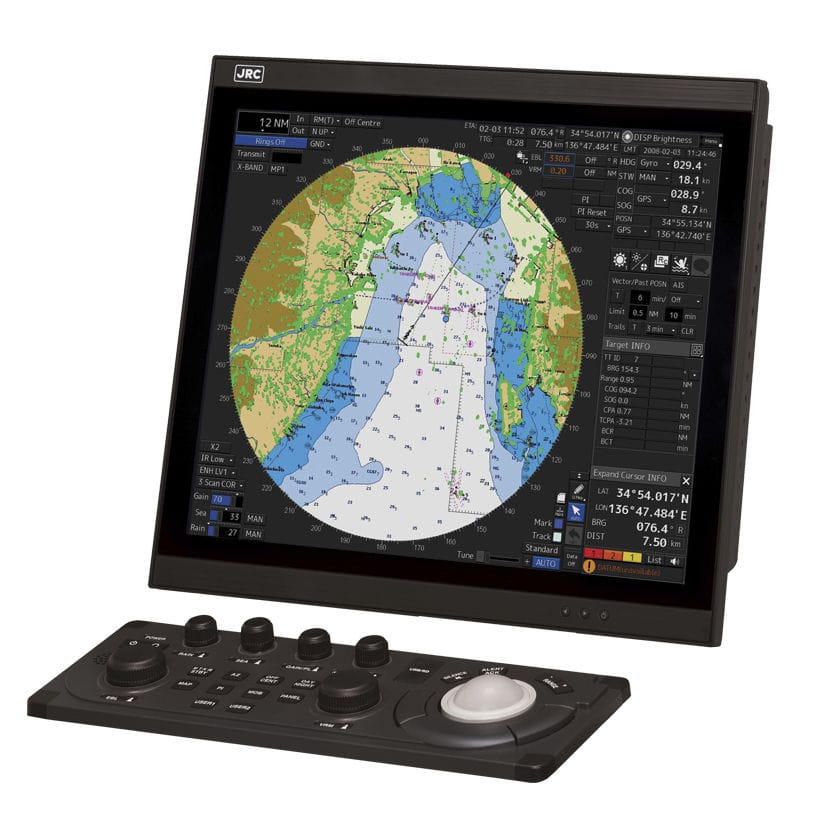

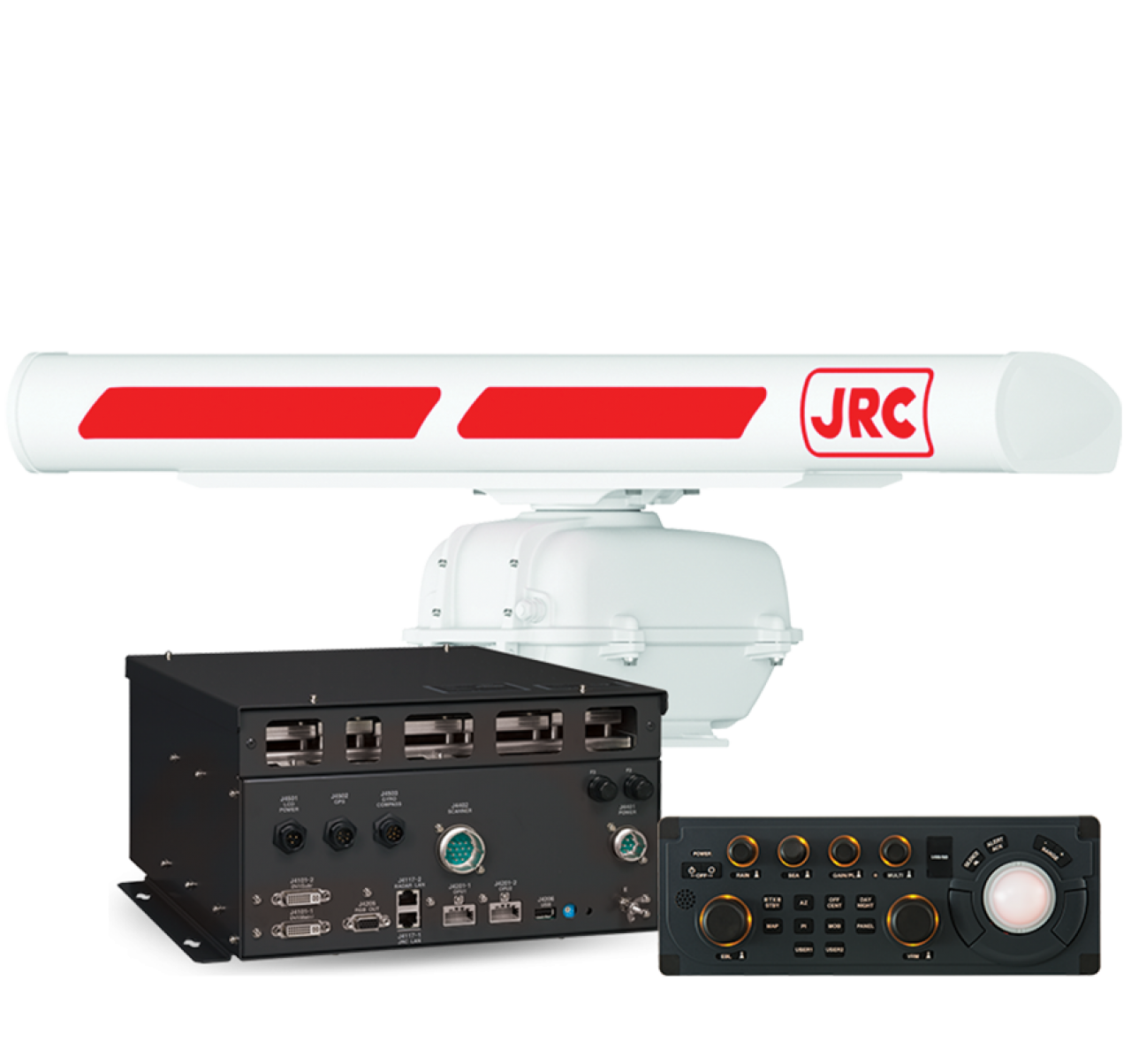

JMR-5400 radarinn er fullkominn radar fyrir stærri skip með öllum tækninýjungum sem finna má í nýjum radartækjum.
Hann hefur einstaka hæfileika til þess að greina hin minnstu ratsjárendurvörp og greina þau frá truflunum. Alsjálfvirkir truflanadeyfar sjá til þess að önnur skip og bátar sjást greinilega við erfiðustu aðstæður.
ARPA og AIS ferlun gerir síðan enn auðveldara að fylgjast nákvæmlega með umferð í kringum skipið. Hægt er að birta radarmyndina ofan á mjög góð rafræn sjókort.

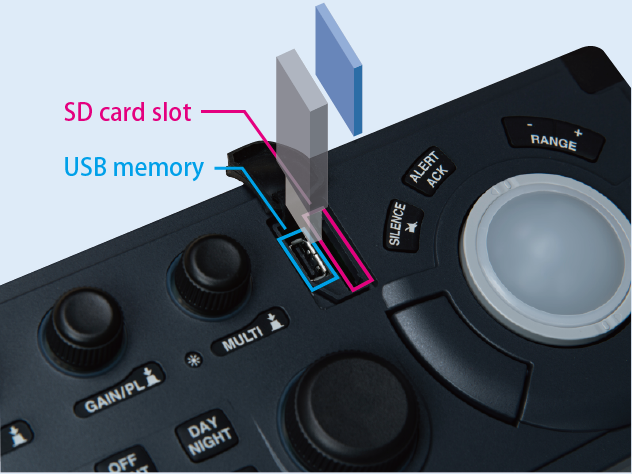

Notkun radarsins er mjög einföld og rökréttar valmyndir sem hægt er að sérsníða tryggja að allir geti nýtt sér þetta frábæra tæki á skilvirkan hátt.
Specifications
| Model | JMR- 5410-4 | JMR- 5410-6 | JMR- 5425-7 | JMR- 5425-9X | JMR- 5460-8S | JMR-5482 -S | JMR-5482 -SH |
|---|---|---|---|---|---|---|---|
| Display | colour raster scan PPI | ||||||
| Range scale | 0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96 NM | ||||||
| Scanners | |||||||
| Model | NKE-2103-4 | NKE-2103-6 | NKE-2255-7 | NKE-2255-9 | NKE-3710-8B | NKE-2632/-H*1 | |
| Transmitting power | 10kW | 25kW | 70kW | 250W | |||
| Transmitting frequency | 9410MHz±30MHz | 9410MHz±30MHz | 3050MHz±25MHz | P0N:3035MHz,Q0N:3065MHz±4MHz or 3060MHz±4MHz | |||
| Antenna length | 4ft | 6ft | 7ft | 9ft | 8ft | 8ft | 8ft |
| Rotation speed | 27rpm | 27rpm | 24rpm | 24rpm | 14/17rpm(50/60Hz) | 24rpm | 48rpm |
| Horizontal beam width | 1.9° | 1.2° | 1.0° | 0.8° | 2.7° | 2.7° | 2.7° |
| Vertical beam width | 20° | 20° | 20° | 20° | 22° | 25° | 25° |
| Weight | 34kg | 36kg | 52kg | 55kg | 98kg | 85kg | 90kg |
| Pulse width | 0.08μs/2250Hz 0.25μs/1700Hz 0.5μs/1200Hz 0.8μs/750Hz 1.0μs/650Hz |
0.07μs/2250Hz,0.2μs/2250Hz 0.3μs/1900Hz,0.4μs/1400Hz 0.8μs/750Hz,1.0μs/650Hz 1.2μs/510Hz |
0.08μs/1700Hz 0.25μs/1700Hz 0.75μs/860Hz 1.0μs/650Hz |
0.07μs/(4.6μs,8MHz)/1860Hz or 2280Hz 0.14μs/(9.1μs,8MHz)/1860Hz or 2280Hz 0.29μs/(9.1μs,8MHz)/1860Hz or 2280Hz 0.57μs/(9.1μs,8MHz)/1280Hz 1.14μs/(18.3μs,8MHz)/640Hz |
|||
| Duplexer | circular + diode limiter | ||||||
| Tuning | automatic / manual | ||||||
| Ambient condition | temperature:-25℃～+55℃; relative humidity:93%@ 40℃ | temperature:-25℃～+50℃ relative humidity:95%@ 35℃ |
temperature:-25℃～+55℃ relative humidity:93%@ 40℃ |
||||
| Processor | |||||||
| Model | NDC-1678 | ||||||
| Bearing indication | RM display:north-up / course-up / head-up TM display:north-up / course-up | ||||||
| Presentation mode | RM display with true trail, RM display with relative trail, TM display | ||||||
| EBL | 2(EBL1/EBL2)(center/independent)000.0° – 359.9°, digital display | ||||||
| VRM | 2(VRM1/VRM2)0.000～96.0NM, digital display | ||||||
| Trail indication | off/0.25/0.5/1/3/6/10/15/30/60-min and continuous | ||||||
| Chart | C-MAP MAX | ||||||
| Display | |||||||
| Model | NWZ-214(19-inch)/NWZ-208(26-inch) | ||||||
| LCD | 1280×1024 dot(SXGA)(19-inch)/1920×1200 dot(WUXGA)(26-inch) | ||||||
| PPI Effective diameter | ≥250mm (19-inch)/≥320mm(26-inch) | ||||||
| Connection cable | 5m (processor-monitor) | ||||||
| Number of TT tracking targets | 30 targets max.(expanding to a maximum 100 targets with an optional function added) | ||||||
| TT Tracking Range | Auto/Manual 32 NM max. | ||||||
| Number of AIS targets | 180 targets max.(expanding to a maximum 1,000 targets with an optional function added) | ||||||
| TT/AIS vector | True/Relative, variable from 1 to 120 minutes | ||||||
| Keyboard | |||||||
| Model | NCE-5794 | ||||||
| Connection cable | 5m(processor-keybord) | ||||||
| Ambient conditions | Operating temperature: -15 to 55℃; Relative humidity: 93% @40℃(processor,display,keyboard) | ||||||
| installation cable | CFQ-6912-20 length 20m(max length 65m) | CFQ-6912 2695110056 2695111160 |
2695110056 | ||||
| Power supply(voltage) | DC21.6～36.0V | DC21.6～30.0V, AC220V | DC21.6～36.0V, AC100V～240V | ||||
| Power consumption(max wind) NWZ-214 |
Max. 350W | Max. 400W | Max. 500W | Max. AC:600VA/DC:200W*2 | Max. AC:1300VA/DC:200W | Max. AC:1700VA/DC:200W | |
| Power consumption(max wind) NWZ-208 |
Max. 400W | Max. 450W | Max. 550W | Max. AC:600VA/DC:250W*2 | Max. AC:1300VA/DC:250W | Max. AC:1700VA/DC:250W | |
| Option | |||||||
| Trackball Operation Unit | NCE-5605 | ||||||
| Trackball Operation Unit Installation Cable | 7ZCNA4152 | ||||||
| Keyboard Operation Unit | NCE-5625 | ||||||
| Junction Box | NQE-1143 | ||||||
| Sensor LAN Switch Unit | NQA-2443 | ||||||
| Rectifier | NBA-5111 | ||||||
| Interswitch Unit | NQE-3141-4A(4ch)/NQE-3141-8A(8ch) | ||||||
| Power Control Unit | NQE-3167 | ||||||
| TT/AIS Option | Software licence | ||||||
| Plotter mode | Software licence | ||||||
| Distributor for Remote Monitor Display Connection |
Video Distribution Amplifier:VAC-2001HB-A Monitor Extension Kit:CQF-5957 |
||||||
| Monitor Stand | CWB-1660(26-inch)/CWB-1659(19-inch) | ||||||
| Monitor Cover | CWB-1621(26-inch)/CWB-1619(19-inch) | ||||||
| Monitor Hood | CWB-1620(26-inch)/CWB-1618(19-inch) | ||||||
| Printer | Printer:7HPNA4003 , L Type Stopper(Printer Fixture):QL-58 | ||||||
| Operation Unit RS-422 Extension Cable |
10m:7ZCRD1746, 20m:7ZCRD1747, 30m:7ZCRD1748, 40m:7ZCRD1749, 50m7ZCRD1750(maximum length) |
||||||
| NSK Unit | NCT-4106A | ||||||
| CMH-2370 Serial LAN Interface Circuit Spare Parts | 7ZXNA4020 | ||||||
| 7HPNA4003 Printer Spare Parts | 7ZXNA4011 | ||||||
